How to install the Isuzu (4JH1 model) Engine Coolant Temperature Sensor

April 28, 2026April 28, 2026 heavydutydiag 0 Comment

Installation

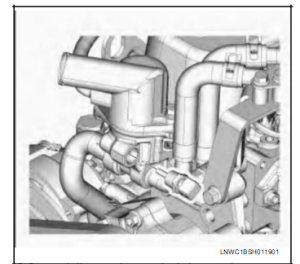

1.ApplyLoctite262 or equivalent or equivalent to the
threaded portion ofthe engine coolant temperature
sensor and tighten at the specified torque.
Tightening torque:
20 N·m(20 kg-m/14 Ibft)

*2.Connect the engine coolant temperature sensof
connector.
3.Close the engine cover.(Non-tiltcab model only)

4.Refill the engine coolant.
5.Connect the battery cable negative terminal.
