Adjusting the Fan Belt
! WARNING
Make sure the engine cannot be started. Disconnect the
battery before doing this job.
2-3-3-5
1
Park the machine on firm level ground, engage the
parking brake and set the transmission to neutral. Raise
and block the loader arms. Lower the backhoe to the
ground and stop the engine.
2

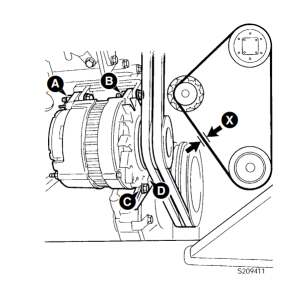

Loosen pivot fastening bolts A and B. Loosen
adjustment link fastening bolts C and D.
3
Position the alternator so that there is 10 mm (3/8 in)
slack at point X.
4
Tighten bolts C and D, then bolts A and B.
Note: If a new belt is fitted, the belt tension must be
checked again after the first 20 hours of operation.
