CAUTION: Avoid injury! Compressed air can cause debris
JohnDeere Service Advisor Electronic Data Link EDL2 Diagnostic Adapter High Quality
to fly a long distance.
- Clear work area of bystanders.
- Wear eye protection when using compressed air for cleaning purposes.
- Reduce compressed air pressure to 210 kPa (30 psi)
IMPORTANT: Avoid damage! An obstructed air intake screen can
cause engine damage due to overheating. Keep air intake screen
and other external surfaces of the engine, including cooling fins,
clean at all times to allow adequate air intake.
03.2024 John Deere Service Advisor 5.3.235 AG/CF Diagnostic Software
1 Park machine safely. (See Parking Safely in the SAFETY section.)
2 Lift hood.

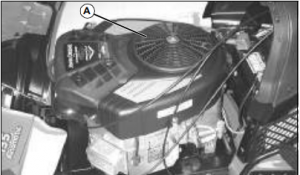

Picture Note: Twin cylinder engine shown.
3 Clean air intake screen (A), cooling fins and external surfaces with rag,
brush, vacuum or compressed air.
4 Lower hood.
