Assembly Steps
CAT Comm Adapter 3 478-0235 Diagnostics for Caterpillar
Note:
Keep all parts clean and free of debris.
Debris can cause rapid wear and shorten component life.

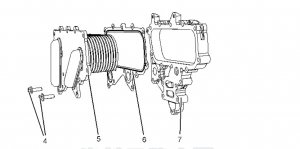

1. Ensure the cooler base (5) is clean, free of obstructions, or damage. Ensure the bulkhead (7) is clean and free of damage. Replace any damaged parts.
2. Place the new fitting (6) on the bulkhead (7). Install the cooler base (5) onto the bulkhead.
3. Install and tighten the bolts (4) by hand.
Installation Steps
1. Clean the cylinder gasket surface.

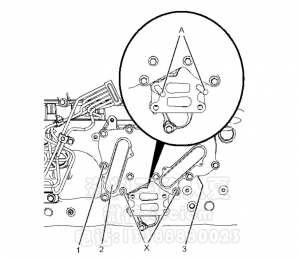

2. Position the new gasket (3) (not shown) onto the engine oil cooler assembly (2). Install the bolts (1) into the serrated holes in the gasket. Note: Ensure that the bolts of different lengths are installed in the correct position.
3. Install Tooling (A) onto the cylinder block.
Caterpillar CAT Factory Password Calculator Generator 10 Digits VM Version
4. Install the oil cooler assembly (2) onto Tooling (A). Ensure that the oil cooler assembly is properly seated in the groove in the cylinder block.
5. Tighten the bolts (1) by hand.
6. Remove Tooling (A).
7. Install the remaining bolts (1) onto the engine oil cooler assembly (2).

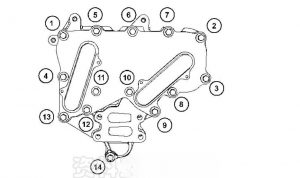

8. Tighten the bolts (1) in the sequence shown in Figure 3 to a torque of 22 N·m (195 lb in).
9. Install the oil filter base. Refer to Disassembly and Assembly, “Oil Filter Base – Remove and Install” for the correct procedure.
10. Fill the cooling system to the correct level. Refer to the Operation and Maintenance Manual, “Cooling System Coolant – Change” for the correct procedure. https://127.0.0.1/sisweb/sisweb/techdoc/techdoc_print_page.jsp?returnurl=/sis… Friday, October 26, 2018
11. Check the engine oil level. For the correct procedure, refer to the Operation and Maintenance Manual, “Engine Oil Level
