Removal
1.Disconnedt the battery cable negative terminal.
2.Drain the engine coolant.

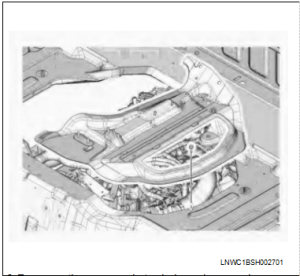

3.Remove the engine cover.(Non-tilt cab model
only)
4.Remove the driver seat.(Non-tilt cab model only)
Refer to “FRAME AND CAB”Section 2.
5.Remove the change lever assembly.(Non-tilt cab
model only)
Refer to “Manual Transmission”in Section 7B.
6.Remove the parking brake lever assembly.(Non-
tilt cab model only)
Refer to “BRAKES”in Section 5C.

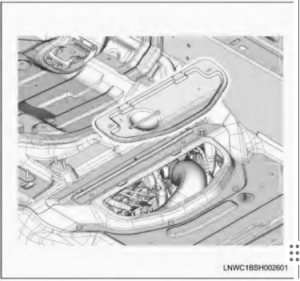

7.Remove the sub engine cover.,(Non-tilt cab model
only)

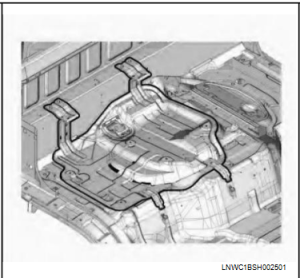

8.Remove the floor support cover.(Non-tilt cab
model only)
9.Remove the reservoir tank hose,bypass hoseand
fan guide.
10.Remove the fan shroud.
11.Remove the cooling fan assembly.
·Remove lock nut and take out cooling fan
assembly.
12.Remove the power steering pump drive belt.
·Loosen the idler pulley lock nut and loosen
adjust bolt,and remove the drive belt.

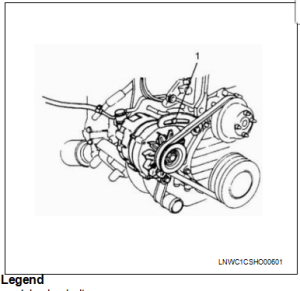

13.Remove the AC generator drive belt.
·Loosen AC generator mounting
bolt(under
side)and adjust plate lock bolt,and remove the
drive belt.

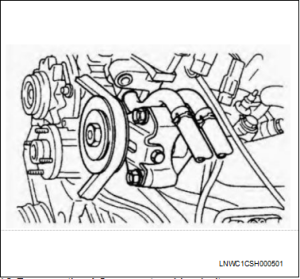

14.Remove the water pump assembly.
·Remove the O-ring.
