- IMPORTANT: Avoid damage! Change the oil more often if the
- vehicle is used in extreme conditions:
- Extremely dusty conditions.
- Frequent slow or low-speed operation.
- Frequent short trips.
03.2024 John Deere Service Advisor 5.3.235 AG/CF Diagnostic Software
- Run engine to warm oil.
- Park machine safely. (See Parking Safely in the SAFETY section.)
- Lift hood.

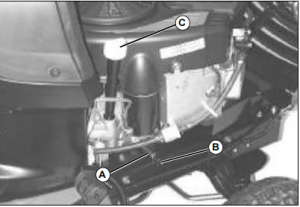

Picture Note: Twin cylinder engine shown.
4 Put drain pan under drain valve (A).
5 Rotate and remove drain cap (B) and drain oil into oil drain pan. Allow
oil to drain completely.
6 Remove dipstick (C).
t2
JohnDeere Service Advisor Electronic Data Link EDL2 Diagnostic Adapter High Quality

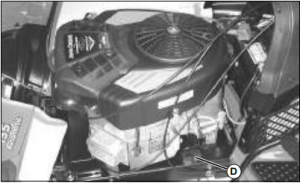

Picture Note: Twin cylinder engine shown.
7 Replace oil filter (D), if equipped.
a.Wipe dirt from around oil filter.
b.Place a drain pan or funnel under filter tray.
c.Remove old filter and filter gasket and dispose of properly. Wipe up
any spilled oil.
d.Put a light coat of fresh, clean oil on the new filter gasket.
e.Install replacement oil filter by turning oil filter to the right (clockwise)
until the rubber gasket contacts filter base. Tighten filter an additional
one-half turn.
8 Install drain cap
IMPORTANT: Avoid damage! Do not overfill. Overfilling can cause
smoking, hard starting, fouling of spark plug, and oil saturation of
air filter.
9 Add oil no higher than FULL mark on dipstick. Use approximately the
amount of oil listed in the Specifications section. Do not overfill.
10 Install dipstick.
11 Start and run engine at idle to check for leaks. Stop engine. Fix any
leaks before operating.
12 Check oil level. Add oil if necessary
