Disassembly Procedure

Begin: A. Remove the fan. Refer to Disassembly and Assembly, “Fan – Removal and Installation”.

            B. Remove the coolant tank (expansion tank). Refer to Disassembly and Assembly, “Coolant Tank (Expansion Tank) – Removal and      Installation”.

Caterpillar ET 2025A & 2019C Electronic Technician Diagnostic Software Download and Installation

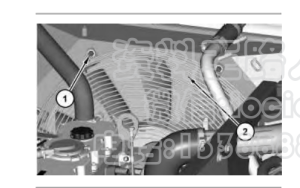

1. Remove the bolts (1) and the guard (2).

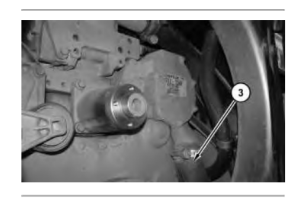

2. Disconnect the hose (3).

CAT Comm Adapter 3 478-0235 Diagnostics for Caterpillar

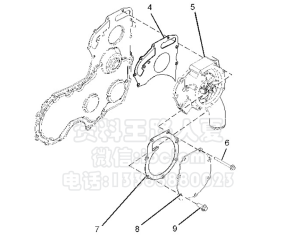

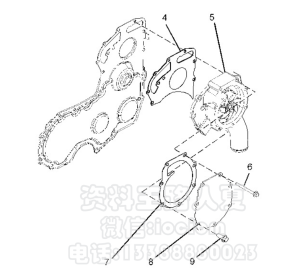

3. Remove the bolts (6), cover (8), and gasket (7). Remove the bolts (9) and water pump (5). Remove the gasket (4). Installation Procedure

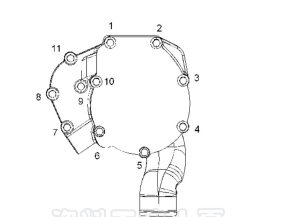

2. Connect hose (3).

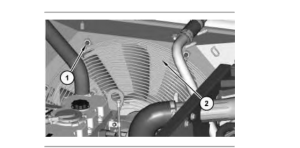

3. Install guard (2). Install bolts (1). End By:

a. Install coolant tank (expansion tank). Refer to Disassembly and Assembly, “Coolant Tank (Expansion Tank) – Remove and Install”.

b. Install fan. Refer to Disassembly and Assembly, “Fan – Remove and Install”.
