Description
Cummings Inline 7 datalink adapter is a reliable adapter that can be used with many applications to communicate with various vehicle systems. Cummings INLINE 7 Data Link Adapter has a faster processor, more robust algorithms, larger memory buffers and more sophisticated filtering than previous models while simultaneously accessing multiple vehicle data channels. INLINE 7 supports USB, WiFi and Bluetooth technologies in a single device. INLINE 7 communicates with your PC and is designed for future capability with mobile products.
Kind tips:Inline 6 can not work with INSITE software from Cumming insite v10.x.x.If you want to use Cummings insite v10.x.x,you need buy inline 7.
Cummings INLINE 7 Features:
High quality
Work with INLINE 7 Driver 2.8.0.7
OEM quality
Free shipping by DHL/UPS/Fedex
Cummings INLINE 6 Data Link Adapter Features:
Supports SAE J1708/J1587 and J1939/CAN data links
Both CAN ports auto detect between 250 & 500 kbps
Supports USB full speed port at up to 2M baud rate
Custom USB cable includes thumbscrews for secure mounting to INLINE 6
Supports RS-232 PC serial port at up to 115.2k baud rate
Is fully compliant with TMC’s RP1210 standard
Small enough to fit in pocket
Attractive black powder coated aluminum housing provides ruggedness
Derives 8 V to 50 V DC power from vehicle
Controlled by advanced 140 MHz 32-bit Freescale processor for maximum speed and performance
Includes 6 LEDs to indicate status of power, USB, RS-232, J1708/J1587, and two CAN communication ports
Both CAN ports support SAE J1939, SAE J2534, and ISO 15765 protocols
INLINE 6 is certified to meet European CE requirements
Rated for -40° to +85° C operating temperature
INLINE 6 meets rigorous in-cab environmental test requirements
Minimum PC System Requirements
Microprocessor – Intel Pentium 500 MHzMemory -2GB
CD Drive
Operating System – Windows 7, Vista, & XP SP3
To Install the INLINE 6 Software Driver
Insert the INLINE 6 driver CD into your computer’s CD-ROM drive Run INLINE6 Driver Setup.exe0
If a Windows Explorer folder opens, select INLINE6 Driver Setup.exe
Note that on some systems the auto run settings may be set to have the installation to just begin executing upon CD insertion.
CAN 1 Port Lamp
A CAN 1 red flashing lamp indicates that the INLINE 6 adapter is physically connected to CAN data link.However,it is not communicate with an ECM on the CAN data link.A CAN 1 green flashing lamp indicates that the INLINE 6 adapter is communicating with an ECM on the CAN data link.
CAN 2 Port Lamp
A CAN 2 red flashing lamp indicates that the INLINE 6 adapter is physically connected to a CAN data link.However, it is not communicating with an ECM on the CAN data link.
A CAN 2 green flashing lamp indicates that the INLINE 6 adapter is communicating with an ECM on the CAN data link
J1708 Port Lamp
A J1708 red flashing lamp indicates that the INLINE 6 adapter is physically connected to a J1708 data link.However, it is not communicating with an ECM on the J1708 data link. A J1708 green flashing lamp indicates that the INLINE 6 adapter is communicating with an ECM on the J1708 data link.
RS-232 Port Lamp
An RS-232 green flashing lamp indicates that the INLINE6 adapter is connected to an active RS-232 port exchanging communications.An RS-232 lamp in the OFF state indicates that the INLINE 6 adapter is not communicating over the RS-232 port.
USB Port Lamp
A USB green flashing lamp indicates that the INLINE 6 adapter is connected to an active USB port an exchanging communications. A USB lamp in the OFF state indicates that the iNLINE 6 adapter is not communicating over the USB port.
Cummings INLINE 6 Adapter Package Including:
1 x INLINE 6 data link adapter (P/N 2892093)
1 x USB 14-foot cable (P/N 2892176)
1 x DB25F/9-pin data link cable (P/N 4919780)

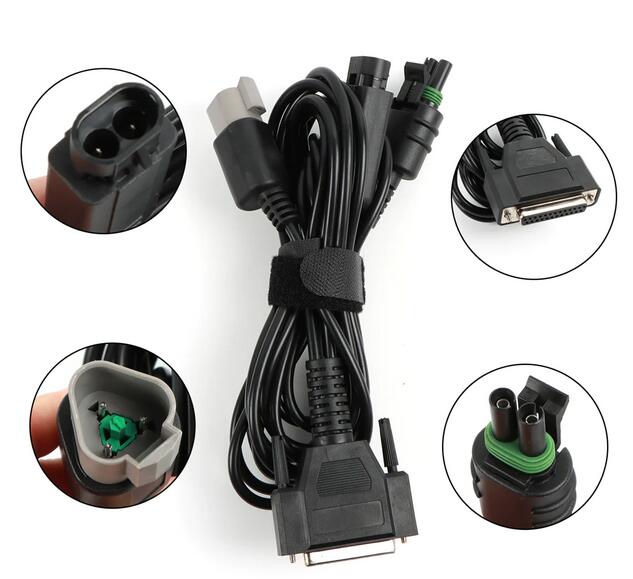

1 x DB25F/3-pin/3-pin/2-pin cable (P/N 4919797)
1 x insite 8.5 software by download link
1 x J1939 Gender Changer adapter (P/N 3163597)
1 x J1939 Backbone adapter (P/N 3163096)
1 x obdII cable (P/N 4919781)
1 x OBD2 12 pin to 16 pin cable

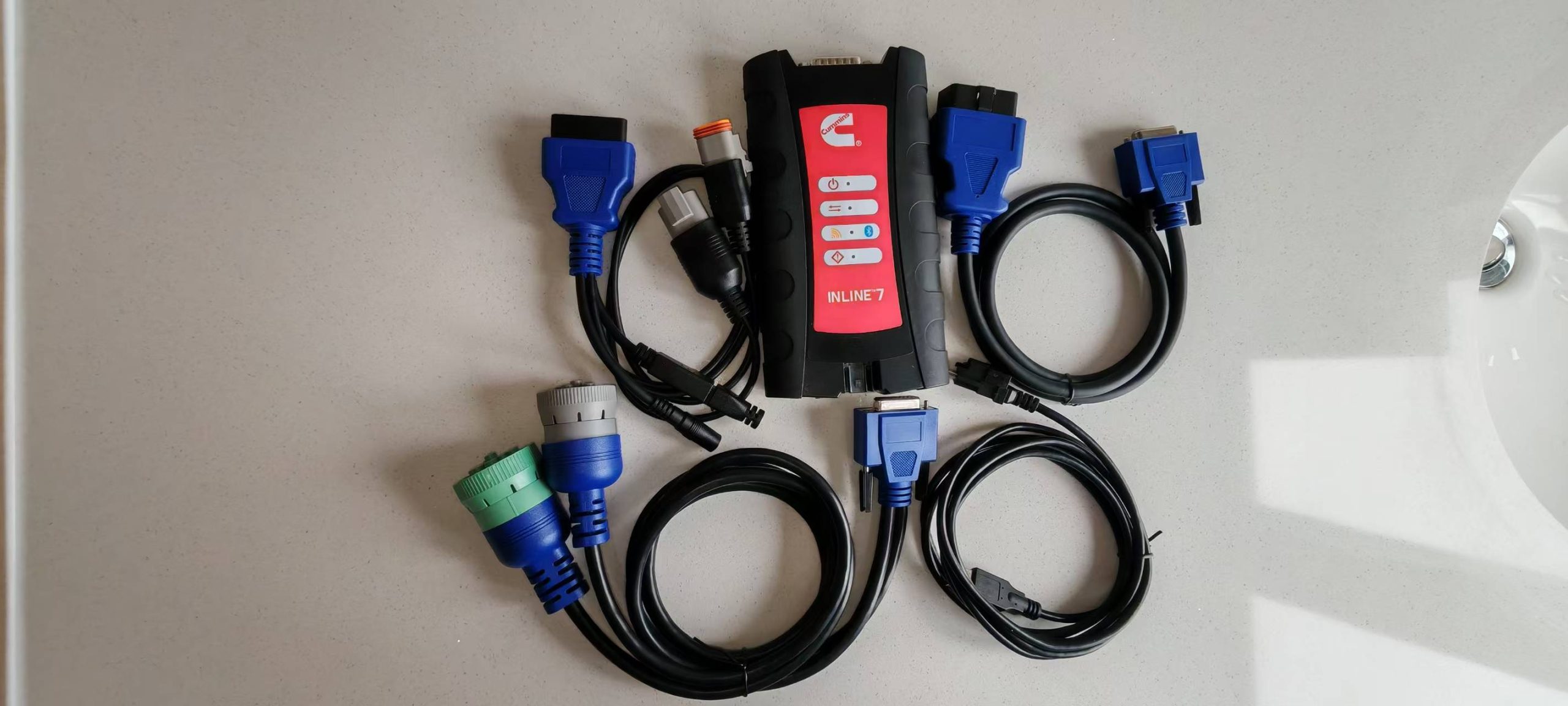

Cummings INLINE 7 Adapter Package Including:
1 xINLINE 7 Main unit

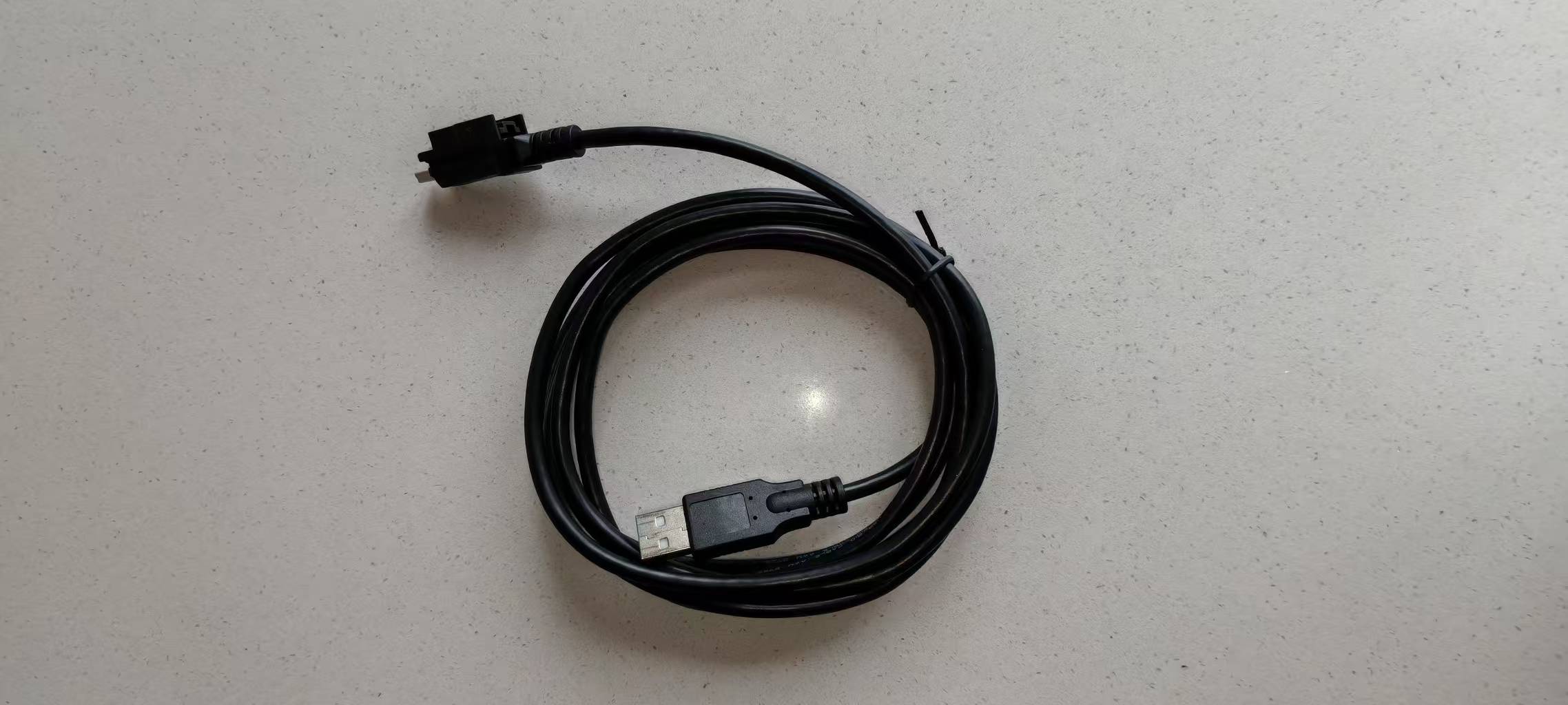

1 xUSB cable

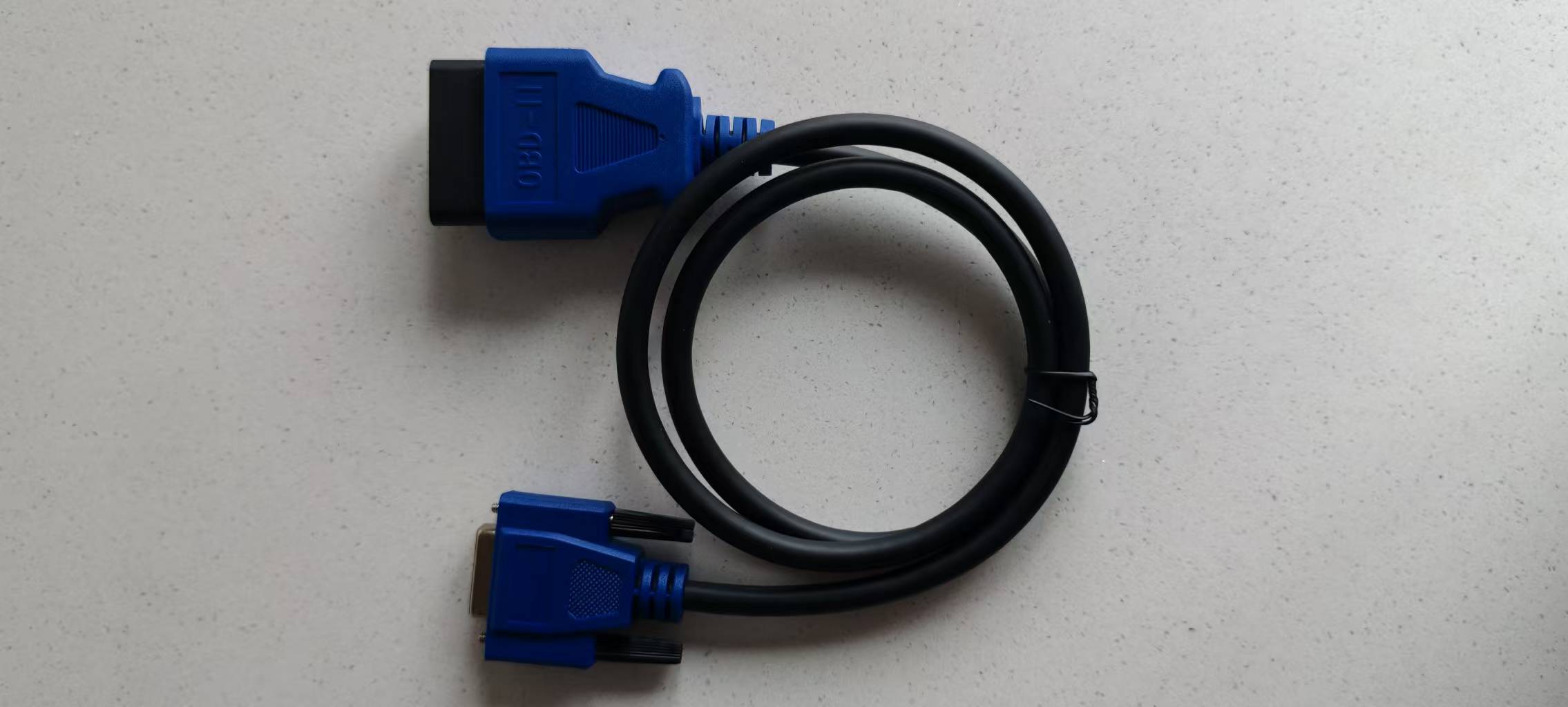

1 x16pin OBD cable

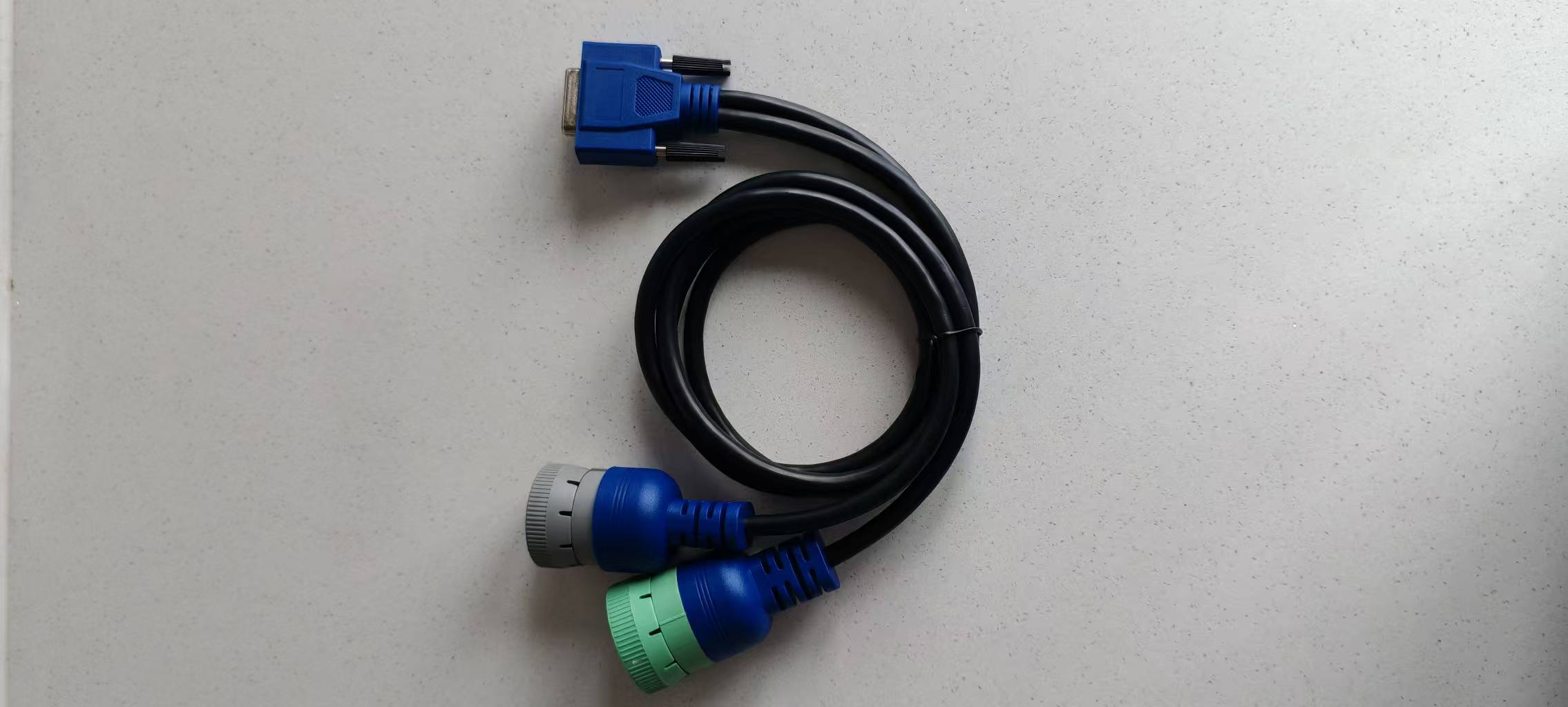

1 x6+9pin diagnostic cable

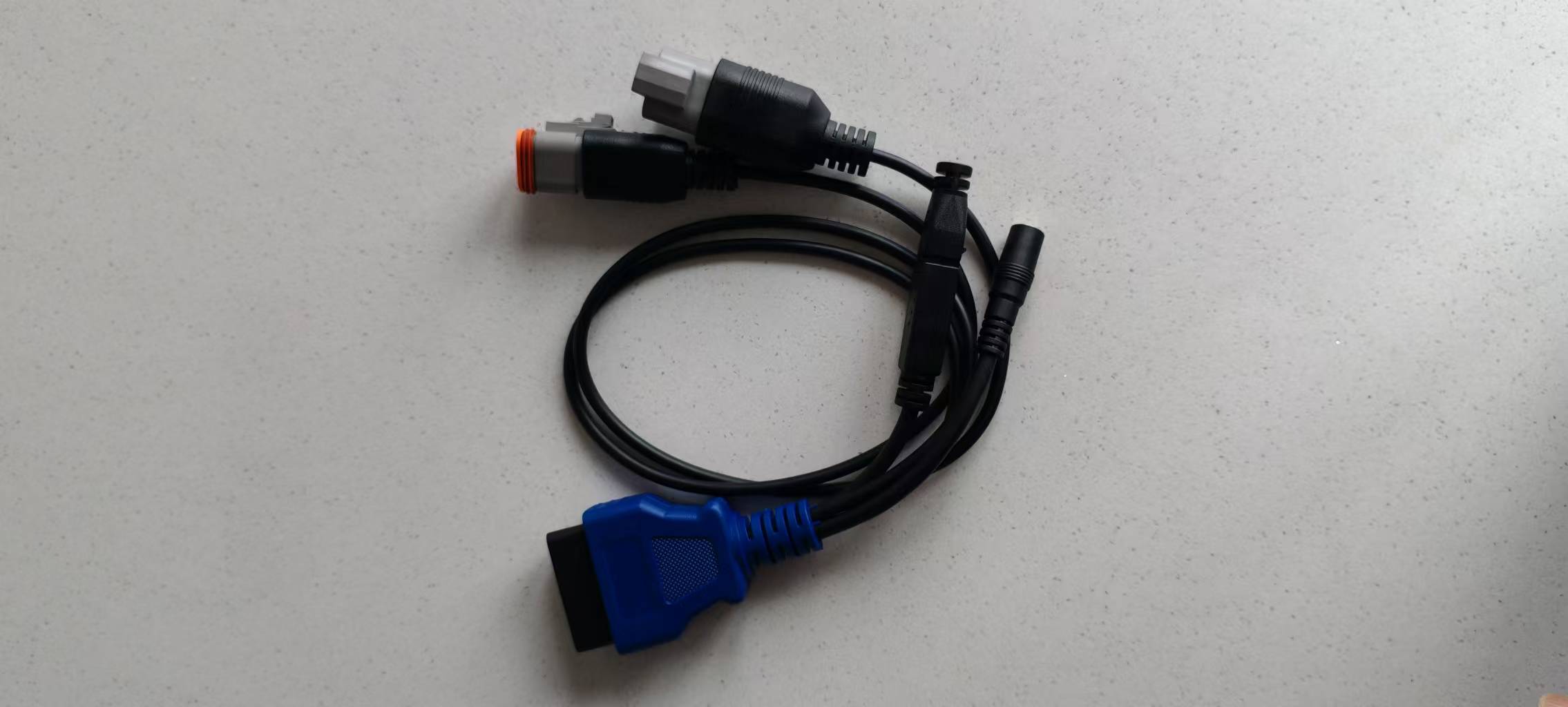

1 x3pin Male plug +3pin plugs +3pin Female plug cable
1 x Black plastic carrying case
